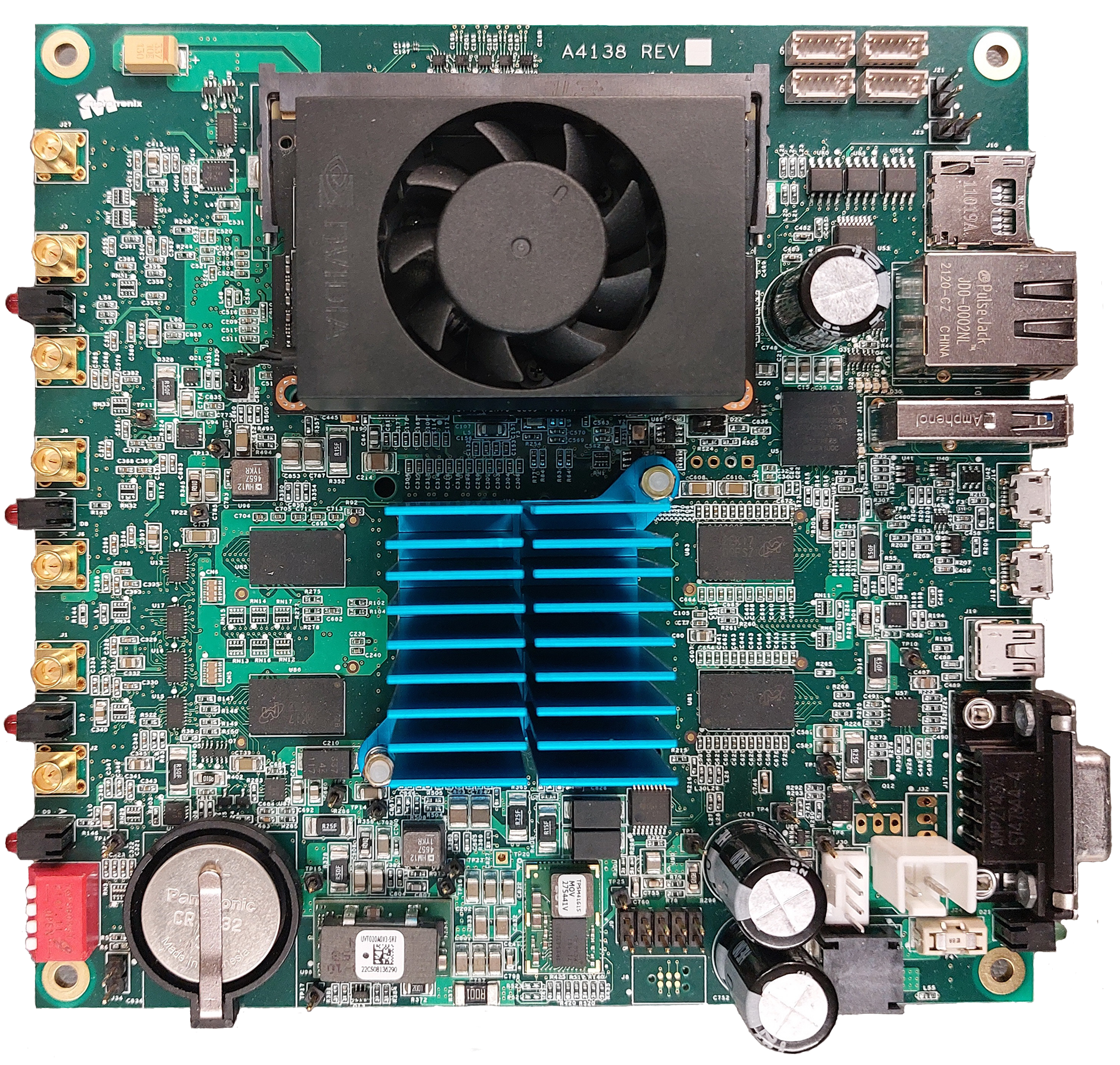

The base carrier board incorporates an Intel Arria 10 FPGA, 64-bit DDR memory to support two channels of 12G-SDI at 4K at 60 fps. An ARM based NVIDIA Jetson Xavier NX System-on- Module generates two video overlay augmented reality graphic streams which are mixed onto the video paths using IP contained on the FPGA providing a high-performance low-latency video system.

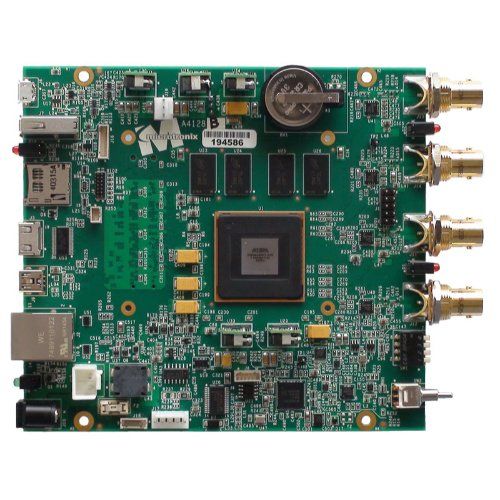

The board utilizes a low-cost Intel Arria V GX FPGA and an off-the-shelf ARM SOC Module to support HD video text and graphics overlay (on screen display) for broadcast,  and high-end video surveillance applications.

For over 25 years, Microtronix has empowered customers worldwide with custom hardware and software design solutions.
