Access 4000 Network Manager
The Microtronix Access 4000 Network Manager software application supports Operations, Administration, Maintenance and Provisioning (OAM&P) of the Microtronix line of Access 4000 X.25-TCP/IP Gateway and Collection Manager products.

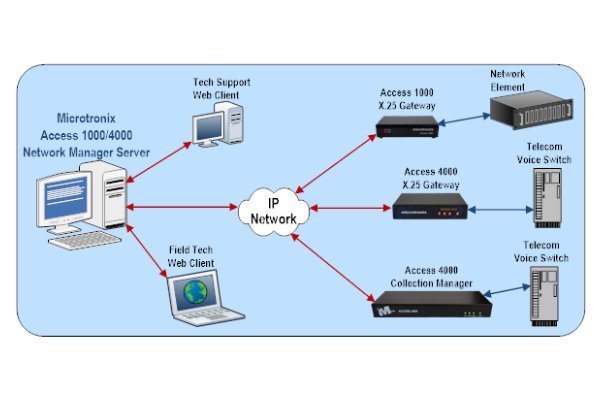

Based on web server technology, the Access Network Manager software monitors the live operational status of Access 1000 and 4000 products deployed in the network. Using a browser, the Network Administrator can access the web server application and instantly observe the operation status of all units and action a connection to diagnose alarms or monitor performance. The diagnostic connection to remote units is accomplished via a secure shell (SSH) TCP/IP connection which ensures network security.
The Access Network Manager runs on x86 Linux (RedHat, CentOS or Ubuntu).
The key features of the Microtronix Access 4000 Network Manager software application include:
- Linux web server software application runs on any PC platform
- Easy to use web interface supports configuration, management and firmware maintenance of Access 1000 and 4000 products
- Web browser user interface (UI) supports standard browsers
- Software actively monitors operational status, WAN Link port(s), X.25 Gateway application, and connection details etc.
- Active auto-scan monitoring based on user settable interval polling schedule
- System display highlights alarm status to the user
- Host ID hyperlinks directly onto the Access 4000 management status web page
- Polling uses Secure Shell (SSH) network connection with public key authentication ensures network security
- Access 1000/4000 system configurations saved and restored with single click
- Manage Access 1000/4000 product firmware updates and restarts
Access Network Manager User Interface Examples

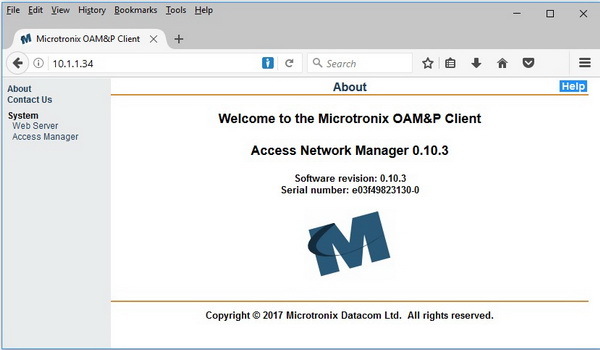

Microtronix OAM&P Management Client main page

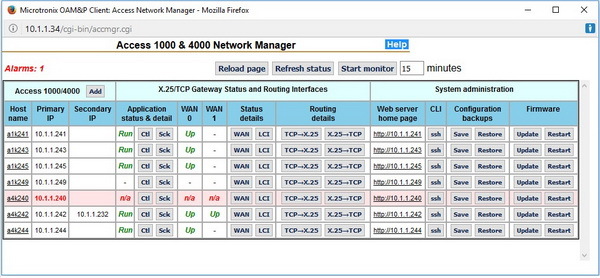

Access Network Manager Monitor UI
Ordering Information
The Access 4000 Network Manager
software application is licensed based on the number of Microtronix Access 1000 and 4000 units being managed. It is ordered using Part Number ANM-xxx, where xxx is 005, 010, 020, 030 and 050 etc.
Contact sales for pricing information.
