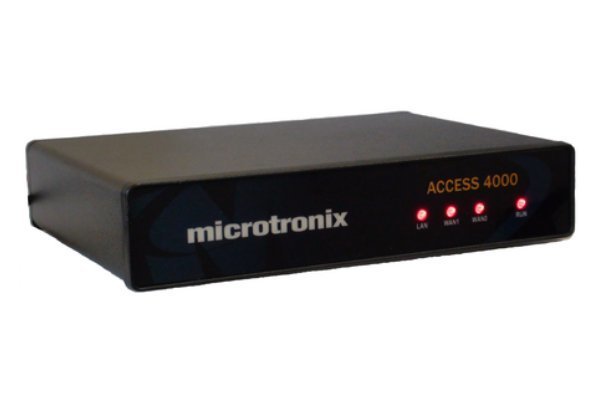

Access 4000 Synchronous & Terminal Server
The Access 4000 Synchronous and Terminal Server is an economical dual port solution for migrating legacy serial devices to TCP/IP or UDP/IP including:
- Synchronous/HDLC to TCP/IP & UDP/IP conversion
- Synchronous/HDLC over TCP/IP & UDP/IP bridging
- Asynchronous/serial to TCP/IP conversion
- Single serial port configurable for async/serial, or synchronous/HDLC
- Serial port speeds up to 10Mbps
- Fully configurable interface settings
- Configurable data encapsulation or conversion
- Easy to use web configuration GUI compatible with any Internet browser (HTTP/HTTPS)
Software
- Serial support for synchronous and terminal server applications
- Telnet and SSH remote management logins
- SNMP polls and interface alarms
- User-friendly web interface for easy configuration and monitoring
Hardware
- 2 - RS232/V.24, V.35, X.21, RS530, RS449/V.36 sync/async ports
- Synchronous speeds 1200bps to 10Mbps, internal or external clock
- Asynchronous speeds 300 to 115200bps
- 10/100-BaseT Ethernet port, auto-detection
- USB host port for serial adapter (1, 2, 4, or 8 port), or flash drive
- -48VDC powered or from 120/240VAC power adapter
- Dimensions: 5.625” x 1.25” x 3.45” (W X H x D); 0.5 pounds
- CE and RoHS
Chassis Enclosure - Rear View
Custom Enhancements
Please contact sales with your custom design requirements.
Synchronous to TCP/IP or UDP/IP Conversion
The Synchronous/HDLC Server converts between serial and TCP or UDP applications by transferring data between the serial interface and the TCP/IP or UDP/IP socket. A configurable encapsulation method preserves HDLC frame boundaries over a TCP/IP interface.
- RAW (when no encapsulation header is required)
- RFC1006 Encapsulation (ISO Transport Service on TCP)
- 2-byte length header
- Other encapsulation methods are available by request
Synchronous over TCP/IP or UDP/IP Bridge
The Synchronous/HDLC Server bridges 2 serial devices over TCP/IP or UDP/IP by transferring data between the serial interfaces over the TCP/IP or UDP/IP socket. A configurable encapsulation method preserves HDLC frame boundaries over a TCP/IP interface.
Asynchronpous/Serial to TCP/IP Conversion
The Terminal Server converts between asynchronous/serial and TCP/IP applications by transferring data between the serial interface and the TCP/IP or UDP/IP socket. Compatibility is achieved using a configurable conversion method.
- RAW (when no conversion is required)
- LINE mode
- IAC-ESC mode for compatibility with Telnet clients
- Other encapsulation methods are available by request
