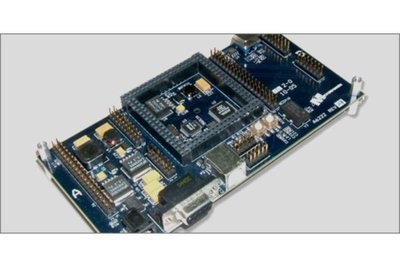

Cyclone IV EP4CE75 Firefly IV Module

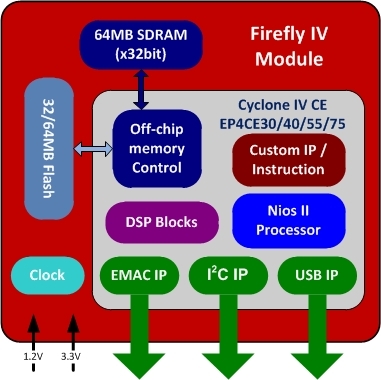

The Firefly IV Configurable Processor Module provides a customizable computer-on-a-module solution. It includes a Cyclone IV CE EP4CE75 FPGA device with a 64 MBit serial programming device, 8-bit processor boot flash, 32-bit SDRAM and one RS-232 UART serial port. Up to 95 user I/O pins are available to support other I/O interfaces and peripherals such as Ethernet, USB, video or LVDS ports.

Standard Configuration

• Cyclone IV EP4CE75F23C6N device
• Up to 95 user I/O available
• 64MB Flash memory
• 64MB SDRAM memory
• M25P64 64Mbit serial programming device
• RS-232 UART port
• 24 MHz oscillator
• Operating temperature: Commercial 0C to 45C & Industrial -30C to 55C
• FPGA speed grade: C6 (Commercial) & I7 (Industrial)
• Supply voltages: 3.3V and 1.2V
• RoHS Compliant

Optional Features

• Industrial temperature (speed grade I7): -40C to 85C

For a custom designed module contact sales.

Ordering Information

• PN: 6285-xx-31 Firefly IV in commercial temp. C6 speed grade, RoHS
• PN: 6285-xx-31-I Firefly IV in industrial temp. I7 speed grade, RoHS

where:

1. "xx" denotes Cyclone IV FPGA size: specify 30, 40, 55 or 75

Part Number Examples

PN: 6285-75-31 specifies a Cyclone IV EP4CE75F23C6N Commercial temperature, speed grade "6" FPGA device
PN: 6285-75-31-I specifies a Cyclone IV EP4CE75F23I7N Industrial temperature, speed grade "7" FPGA device

For more information or volume price discounts contact sales.
