DX-8000 - 12G-SDI 4K Dual-channel Text & Graphics Overlay Inserter with PIP and PAP Display

The DX-8000 is a high performance low latency Dual channel 12G-SDI 4K Video Text and Graphics Overlay Inserter supporting alpha blended text and graphics overlay/on-screen display (OSD). The unit supports standard definition (SD) video up to 4K UHD/DCI resolutions with less then one frame of video delay between input and output in the low latency configuration.

The product passes all video content including audio channels and embedded metadata. Either SDI input can be used for either a scaled dual picture-in-picture (PiP) or a side-by-side / picture-and-picture (PAP) display. Secondary SDI outputs provide a clean loop pass-thru output of the respective SDI input.

User Configuration, Management & Control

An integrated ARM SoC supports enhanced text, telemetry data, image overlay including graphic widgets, line/circle drawing and rotations. Up to 1,000 independent text fields, images and graphic elements can be overlaid (inserted) onto either of the video streams. An extensive command set allows for full control of size, font type, color, position, background color and full transparency control. The overlay data and user commands are delivered to the unit through the RS-232 (DB9 or USB) serial ports or via a TCP/IP Ethernet connection. An interactive Web based user interface is available for configuration, management, maintenance and control.(See below.)

Interactive Graphic Overlay Designer User Interface

The Interactive Graphic Overlay Designer user interface (UI) offers the user a WYSIWYG method to configure the video text and graphic overlay information using a USB mouse and keyboard attached to the DX-8000. Overlay text, images and graphical components can be placed, sized and their attributes (color, font etc.) configured and modified as required directly while the user observes the video overly display on the output video. RS-232 and UDP data streams can be parsed and dynamically overlaid onto the output video stream.

Modes of Operation

The unit has a number of user selectable Modes of Operation, each offering a different set of features and functionalities.

1) Dual Channel Text & Graphics Overlay Inserter

In this Mode, the product provides 2 video channels with separate text and graphics overlays for each channel. Each channel supports the SD, HD, up to 4K video resolutions (listed below) complete with ancillary (ANC) data pass through. Digital zoom is supported for progressive video formats.

2) PIP Text & Graphics Overlay Inserter

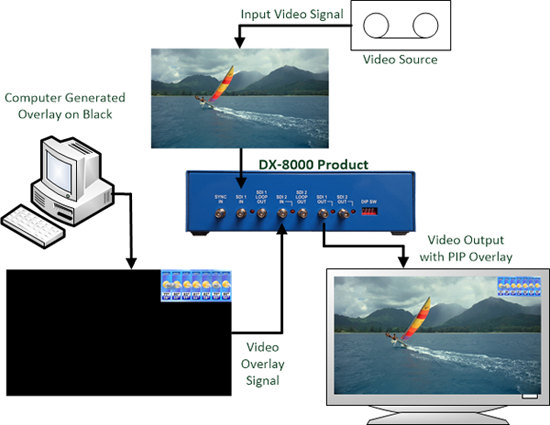

This Mode supports a single text inserter with a main input and a secondary input. Both inputs have scaling capabilities to allow for use as picture-in-picture (PIP), split screen or side-by-side PAP configurations. In this Mode the unit supports text and graphics overlay functionality.Ancillary data from input 1 passes through the unit to the output.

3) Low Latency Dual-channel Text & Graphics Overlay Inserter

This mode also offers a low latency setting in which the video path has 1 to 2 lines of frame of delay. In this configuration, zoom, Alpha Blending and PiP functions are not supported.

Key Product Features

• Supports live text and telemetry data insertion on interlaced, progressive segmented frame (PsF) and progressive video streams at video resolutions from SD up to 4K UHD/DCI
• Video overlay of text, images and software generated graphics
• Alpha blending of text, images and graphic overlays
• Dynamic positioning and rotation of text/image overlay fields
• Supports text scrolling and crawling for news-feed applications using QML scripting
• Scaling of text and graphic images
• Integrated real-time clock with support for NTP & PTP time protocols for time & date applications
• Output video clock frequency is locked to input
• Programmable Frame Delay Compensation: 1-20 frames of delay
• Digital zoom (video scaling) of PIP input
• User configurable frame delay compensation (1-20 frames)
• Video frame capture

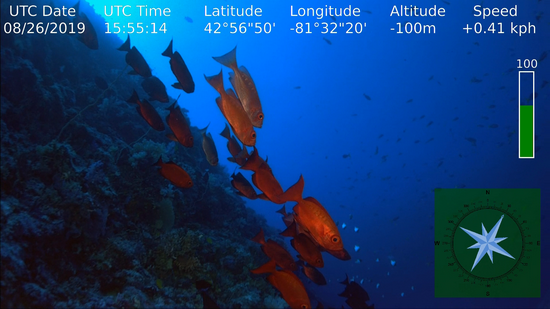

• Parsing of GSP NMEA 0183 messaging protocol data supports active display of GPS NMEA data for OSD systems
• Parsing and display of incoming RS-232 or UDP over Ethernet data streams (This feature is available from the WYSIWYG Interactive Overlay design interface.)
• Supports the Qt Meta Language (QML) scripting for enhancing user interface-centric (animated) applications

User Control:

Unit configuration and control is via a RS-232 serial port user command line interface, a Network TCP/IP Web connections. A Interactive Graphic Overlay Designer interface is available for a WYSIWYG mouse driven overlay design environment.

Supported SDI Video Resolutions

HD, FHD, 2K & 4K Formats:

• 720p @ 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• 1080i & 1080 PsF @ 23.97 / 24 / 25 / 29.97 / 30 fps (see Note 1)
• 1920x1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• 2048x1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 fps
• UHD 4K: 3840x2160p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• DCI 4K: 4096x2160p @ 23.97 / 24 / 25 / 29.97 / 30 /50 / 59.94 / 60fps

Note 1) Interlaced and PsF video frames consist of 2 sequential fields at twice the listed frame rate.

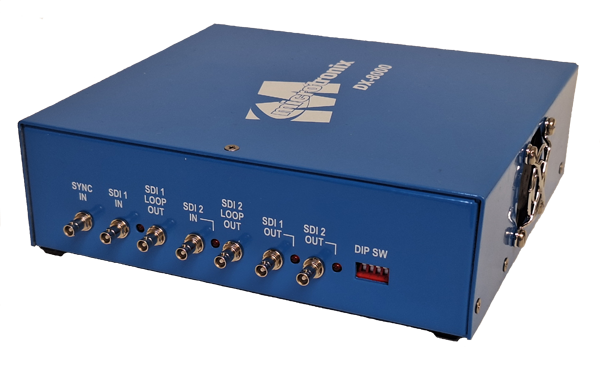

Video Ports

• Two 75Ω SD – 12G-SDI inputs& outputs
• Two 75Ω SD – 12G-SDI Loop/pass-thru outputs
• One analog gen-lock video input

Other User Port Interfaces

• DB9 RS-232 Serial Port
• USB mini-B Serial port
• 2 USB 2.0 ports, 1 USB 3.0 port
• 1 Ethernet port

Other Features

• Supports parsing & display of GPS data input from NMEA 0183 RS-232 data sources
• Supports ancillary and VBI content including audio channels and embedded metadata on the main SDI feed
• Optional VBI line insertion capability. (Contact Microtronix Sales with your application requirements.)
• User configuration, text fields, images (PNG, JPG, JPEG, BMP etc.) and graphic elements are stored in on-board file system
• Auto system recovery after power-off
• Firmware upgrade via serial or the Ethernet port

Power & Mechanical

• Power Adapter: regulated 12VDC @ 6A 110/240VAC power adapter
• Mechanical Enclosure (DxWxH): 162mm x 172mm x 50.8mm / 6.35" x 6.75" x 2"

Product Customization

Microtronix provides product customization and engineering design services to support your system integration requirements. Contact Microtronix Sales today with a block diagram of your setup and a brief outline description of your design requirements.

Product Warranty

• 1-year factory replacement policy
