DX-2200 Dual-view 2x1 SDI Video Frame Synchronous Switcher supporting: PIP, PAP, Split-Screen & OSD

The Microtronix DX-2200-SW Dual-view 2x1 SDI Frame Synchronous Video Switcher is a high-quality professional grade, frame synchronous 2x1 video switcher supporting:

• Glitch-free switching of non-synchronous video sources

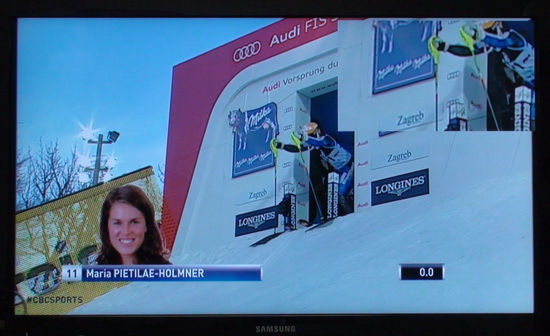

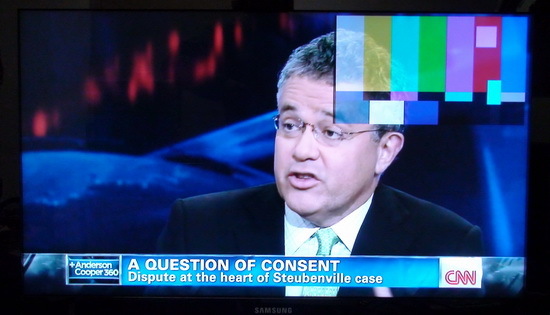

• Alpha blended Picture-in-Picture (PIP)
• Picture-and-Picture (PAP) - side-by-side and vertically stacked dual-display
• Alpha blended wipe/video switching transitions,

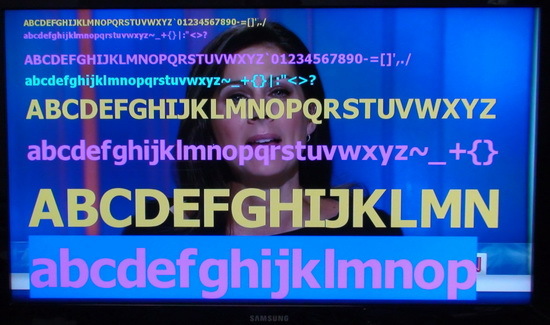

• Alpha blended text and graphics (logo) overlay on-screen display (OSD)
• Drawing of straight lines and rectangles
• On-screen Frame Counter display
• Standby Video Switcher function on loss of a video input
• Video resolutions up to 1920x1080p30
• User control via switches and RS-232 Serial Control Port

The DX-2200-SW unit is designed as a seamless 2x1 SDI Video Switcher for professional camera display systems, video recording and high-end surveillance applications requiring glitch-free (frame synchronous) video switching and simultaneous PAD (Dual-view) display of the SDI inputs and the ability to insert (overlay) alpha-blended text and graphics information onto live a SDI video stream. The graphic images are uploaded through the RS-232 serial port from a computer using a Java software Up-loader application.

Note: Embedded audio channels and Ancillary Data are not support in the DX-2200 Dual-view 2x1 SDI Switcher product.

Seamless, glitch-free video switching

Designed to operate with non-synchronous video sources, our proprietary frame-synchronous video switching IP ensures seamless glitch-free video output whether: switching between inputs, swapping inputs for PIP display, or when switching modes of operation between PIP, PAP (dual display) or Split-Screen display. Switching occurs between frames for progressive video and between fields for interlaced video. The Switcher supports most standard interlaced, progressive and progressive segmented frame (PsF) video formats.

User Control

The unit is controlled either manually using a Toggle switch, a 4-position DIP switch or dynamically under the control of a computer via RS-232 Serial Control Port commands.

The size and position of the PIP window is fully configurable via the Serial Control Port. Additional serial commands provide for: alpha blending of both video and text/graphic overlays, multi-function switching transitions, dynamic text overlay (with color, size and position control), drawing of straight lines/rectangles and digital zoom of the video inputs. The user also has the option to re-assign the use of the Toggle and DIP switches to support custom modes of operation.

Key Features

• Seamless frame-synchronous glitch-free video switching between video inputs and across modes of operation
• Dual-view PIP, PAP and split-screen display
• Alpha blended PIP
• 2x1 4.2.2 RGB SD/HD-SDI multi-function video switching
• Alpha blended text and graphics overlay OSD
• Loop / pass-through SDI output of primary input

• Full-screen 2x1 video switcher
• Picture-in-Picture (with alpha blending with size and position control)
• Picture-and-Picture (PAP) Dual-display: side-by-side and vertically stacked Picture-and-Picture
• Split-screen display
• Alpha blended overlay full screen
• Alpha blended wipe/video switching transitions
• Standby Video Switcher function on loss of a video source

• Alpha blended text and graphic overlay
• Up to 48 independent Text/Graphic Fields
• Text size, font, color, and position control
• Configurable background color
• Digital Zoom: 28 steps of 0.25 from 1x to 8x
• On-screen Frame Counter

• NTSC @ 59.94 fps
• PAL @ 50 fps
• 720p @ 25/29.97/30/50/59.94/60 fps
• 1080i @ 25/29.97/30 fps
• 1080p @ 23.98/24/25/29.97/30 fps
• 1080PsF @ 23.98/24/25/29.97/30 fps
• Auto Standby Switching: output switches to active input on signal loss
• Two 75 Ω equalized HD-SDI inputs
• One 75 Ω re-clocked HD-SDI 2x1 switcher output
• One 75 Ω re-clocked HD-SDI loop output of SDI Input 1

• RS-232 Serial Control Port commands. (An optional Data Port is available for custom applications, i.e. GPS NEMA 0183 RS-232 data sources etc.)
• User programmed Toggle switch and DIP switch functions
• Flash storage of user configuration for auto system recovery after power-off
• SDK available for computer control of unit in an embedded application
• Firmware update via RS-232 serial port
• Power: regulated 12VDC @ 1.3A
• Mechanical: 132mm x 109mm x 33mm (LxWxH)

Product Customization

Microtronix provides product customization and engineering design services to support your system integration requirements. Contact Microtronix Sales today with a block diagram of your setup and a brief outline description of your design requirements.

Product Warranty

• 1-year factory replacement policy
