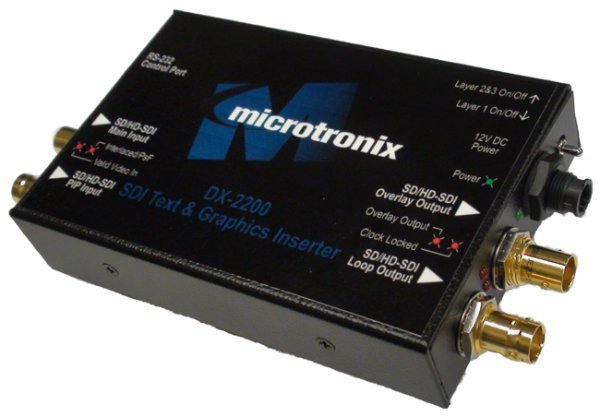

DX-2200 SD/HD-SDI Text & Graphics Overlay Inserter (OSD) with PIP & SDI Loop Output

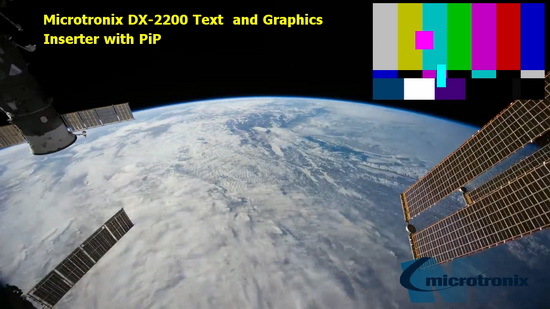

The DX-2200-TI-24 is a single port, high-speed and low frame delay SD/HD-SDI Text and Graphics Inserter with PIP OSD capable of overlaying live text and graphic components (symbols, lines, logos etc.) onto a SD or HD SDI video stream in both interlaced and progressive video formats. Up to 48 independent text or graphic fields on each of three overlay layers can be displayed and positioned as required. The text can independently controlled for color, size, font and background color. Enhanced on screen display (OSD) capabilities include: alpha blending and multi-layering of both text and graphic fields, and dynamic positioning of text and graphic components. An ancillary SDI input (which can operate asynchronous to the main video source) is used for overlaying a PIP display from a second video source.

The text and graphic OSD information is delivered to the unit through the RS-232 Serial Control Port. An extensive Serial Command set allows for full control of text size, font type, color, position, transparency and background color and background transparency. Serial commands can optionally be used to assign custom switch functions to control the display of text or graphic fields. User text, graphics overlays and custom user configurations can be stored in on-board flash. The unit has 2MB of flash available for storing graphic images uploaded through the serial port using a JAVA Software Uploader utility.

The DX-2200-TI-24 overrlay inserter is designed for use in broadcast, professional video recording, surveillance, point-of-sale, security and embedded applications requiring alpha blended graphics (i.e. logos) overlay and live, high-speed text insertion with minimal frame dealy and no degradation of the video content. All ancillary and vertical blanking information (VBI) content including audio channels and embedded metadata is passed through transparently (on the main SDI feed).

The unit provides two SDI outputs: one with the overlay and the other a clean loop-thru output of the video source.

Key Features

• Supports live text insertion on interlaced, progressive segmented frame (PsF) and progressive video streams
• Dual SD/HD-SDI inputs: one for the main input & one ancillary for the PIP display
• Dual SDI outputs: one with the overlay & the other a loop-thru of the main SDI input
• Low frame delay modes of operation offer less the one video frame of delay from input to output

Supported SD and HD SDI video formats:

• NTSC 480i @ 29.97 frames per sec (fps)
• PAL 576i @ 25 fps
• 720p @ 25 / 29.97 / 30 / 59.94 / 60 fps
• 1080i @ 25 / 29.97 / 30 fps
• 1080p @ 23.98 / 24 / 25 / 29.97 / 30 fps
• 1080PsF @ 23.98 / 24 / 25 / 29.97 / 30 fps

Text and graphic overlay OSD:

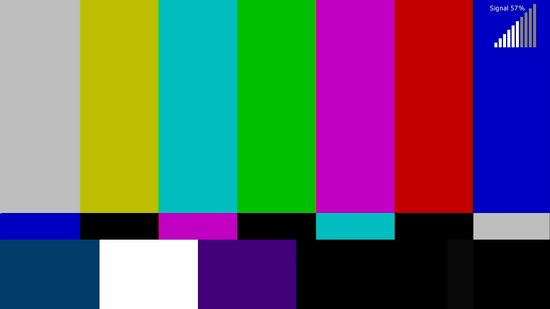

• 3 alpha blended overlay layers
• Up to 48 independent Text Fields
• Up to 48 independent Graphic Fields
• Text size, color, transparency and position control
• Configurable background color
• Alpha blending of text and text background
• Alpha blending of graphic components
• Dynamic positioning of text and graphic overlay components
• Fields support line drawing, open and filled rectangles

• Output video Frame Counter text overlay display
• Output video clock frequency is locked to input
• Low latency video delay: a single video frame plus 1 line of video
• Digital zoom (video scaling)
• Supports ancillary and VBI content including audio channels and embedded metadata on the main SDI feed

User Control:

• RS-232 Serial Control Port. (An optional Data Port is available for custom applications.)
• User definable operation of DIP & Toggle switches
• SDK available for computer control of unit in an embedded application
• Web UI Product Manager Application via Raspberry Pi3

• Flash storage of user configuration (including text and graphics) for auto system recovery after power-off
• Firmware update via RS-232 serial port from PC via Uploader utility or Raspberry Pi3 Web UI App
• Power: regulated 12VDC @ 1.3A 110/240VAC adapter
• Mechanical: 132mm x 109mm x 33mm (LxWxH)

DX-2200 Product Manager Web UI - Raspberry Pi3 Application

Microtronix provides a Web Server based Product Manager Web User Interface (UI) Application for a Raspberry Pi3 platform which provides the user with Web UI – from a standard browser connection – the ability to configure, control and monitor DX-2200 product attached to a Raspberry Pi3 unit through a USB-serial connection.

The Web Server package is available for download from the Software Updates area under Resources tab on our website here: DX-2200 Web Manager Application.

Product Customization

Microtronix provides product customization and engineering design services to support your system integration requirements. Contact Microtronix Sales today with a block diagram of your setup and a brief outline description of your design requirements.

Product Warranty

• 1-year factory replacement policy
